Battery Chargers

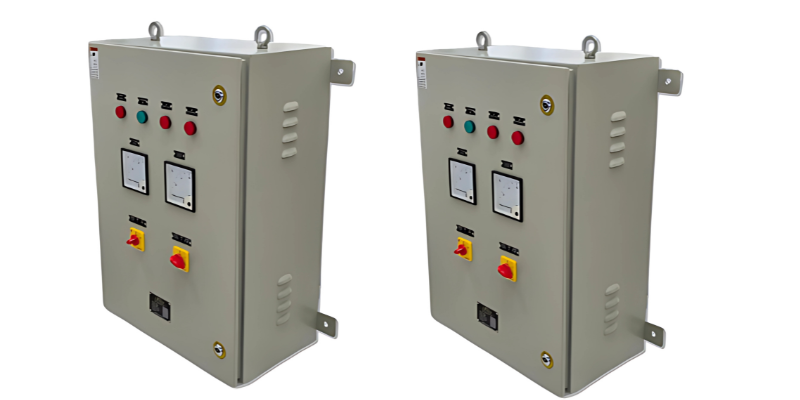

POWER PLUS PRO FCBC
• DSP-based control system.
• Rectifier designed with IGBT technology.
• Minimal voltage ripple for extended battery lifespan.
• Integrated galvanic isolation transformer.
• Input power factor close to unity.
• Energy-efficient design to reduce power consumption.
• Automatic switching between float and boost modes.
• Compatible with all types of battery chemistries.
| Specification | Details |
|---|---|
| INPUT TYPE | 1-PHASE 3 WIRE3-PHASE 4 WIRE |
| INPUT FREQUENCY | 50 Hz ±1% |
| POWER FACTOR | NEAR UNITY |
| OUTPUT RANGE | 12 Vdc TO 220 Vdc |
| OUTPUT CURRENT | 30 Adc TO 300 Adc |
| ISOLATION | INPUT GALVANIC ISOLATION |
| PARAMETER CONTROL | POTENTIOMETER CONTROL WITH VOLT METER AND AMMETER(OPTIONAL 7 INCH HMI CONTROL WITH ALL PARAMETER CONTROL) |
| PROTECTION | • MCB BASED PROTECTION ON INPUT• OVER TEMPERATURE TRIP• SHORT CIRCUIT PROTECTION• OUTPUT OVER VOLTAGE AND OVER CURRENT TRIP• SINGLE PHASING PROTECTION• IGBT OVER CURRENT TRIP• INPUT OVER VOLTAGE AND UNDER VOLTAGE TRIP |
| CURRENT SELECTION | MANUAL FLOAT/BOOST SELECTOR SWITCH(OPTIONAL AUTO MODE ALSO AVAILABLE) |
| BATTERY TYPE | LEAD ACID / VRLA / Ni-Cd |
| CHARGER EFFICIENCY | MORE THAN 85% |
